A2-09 OPT System (was formerly G6-400).
Invenco Group Ltd.

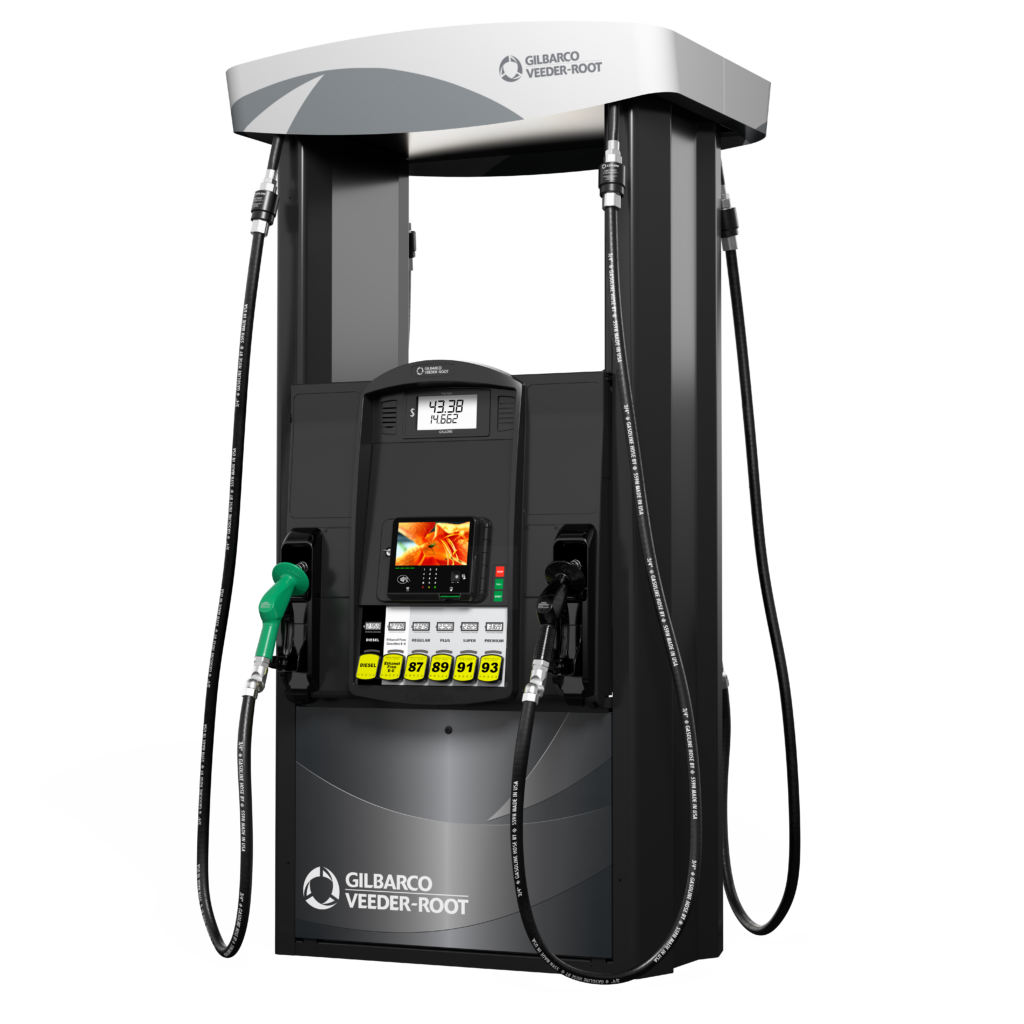

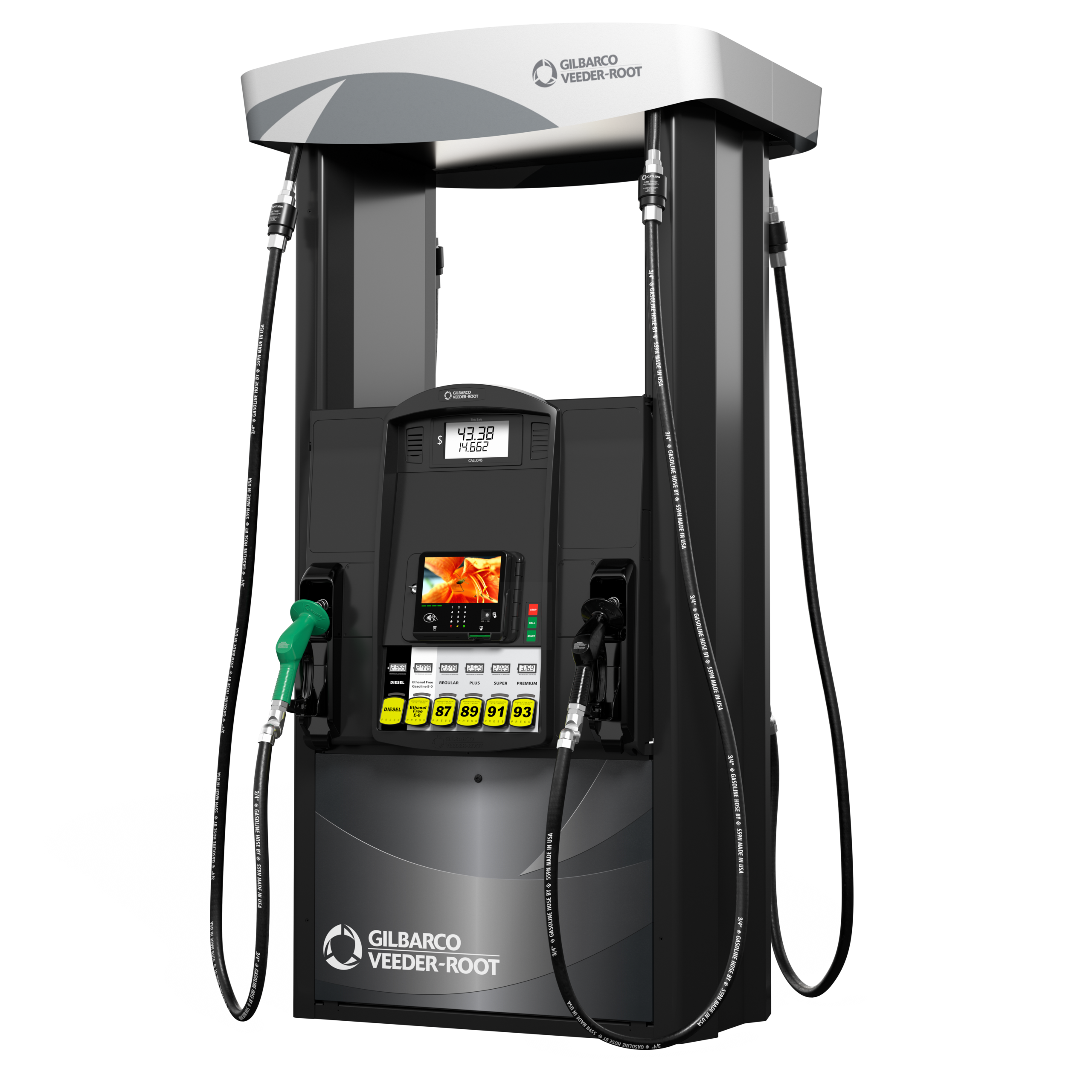

The A2-09 OPT (Outdoor Payment Terminal) is the succeeding generation of the Invenco all-in-one G6 series of terminals. This product has been integrated into the GVR FlexPay 6 system. This update included a number of customer and end-user focused enhancements:

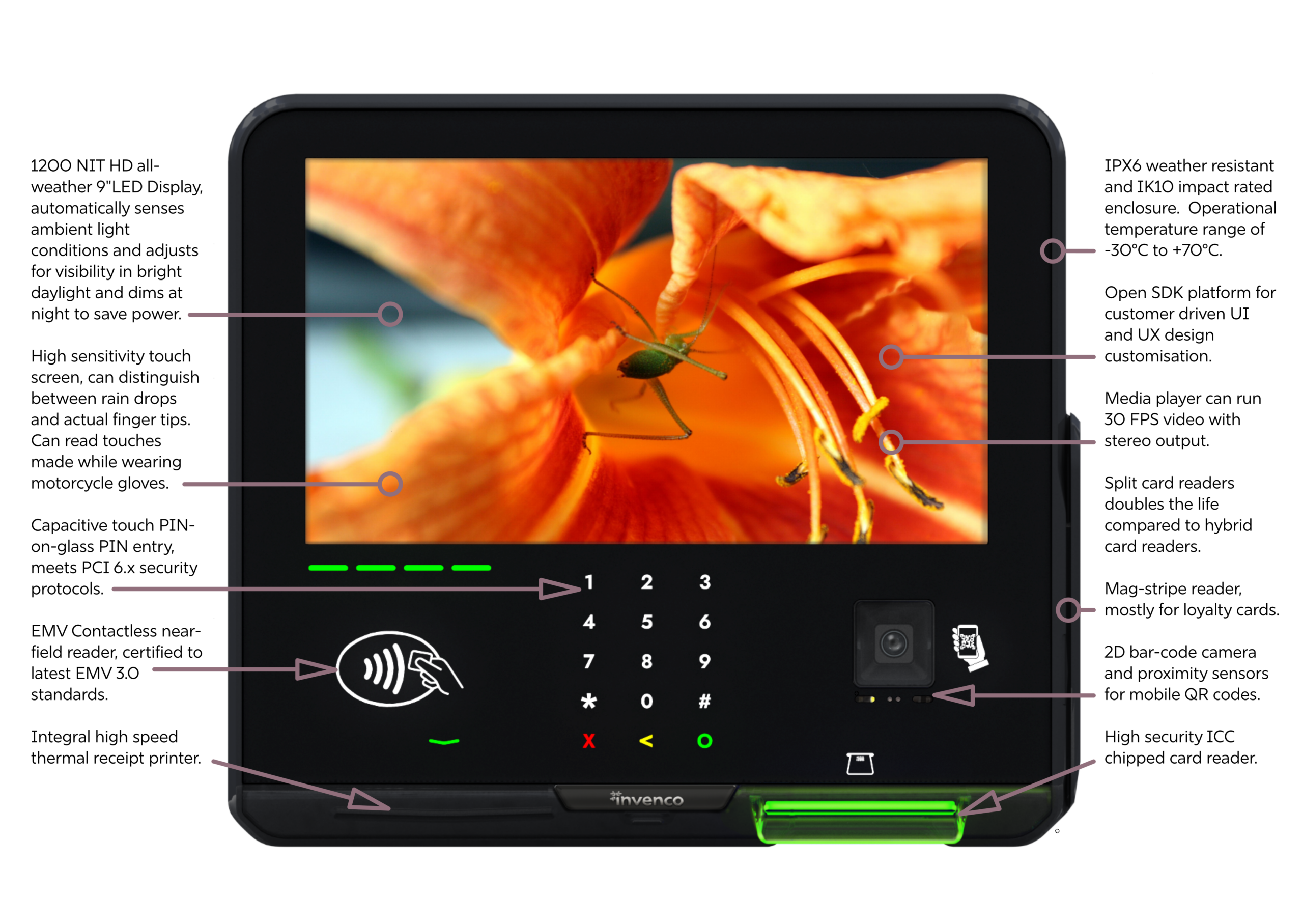

It was a challenge to fit the larger screen and the full list of features into the same footprint as past G6 OPTs. Changing the PIN entry to a capacitive touch system on glass improved weather-tightness and mechanical reliability as well as (counter intuitively) impact resistance which now exceeds expectations to IK-10.
From a security point of view, this product meets the latest PCI 6.x protocol and the latest EMV 3.0 standards for payment systems.

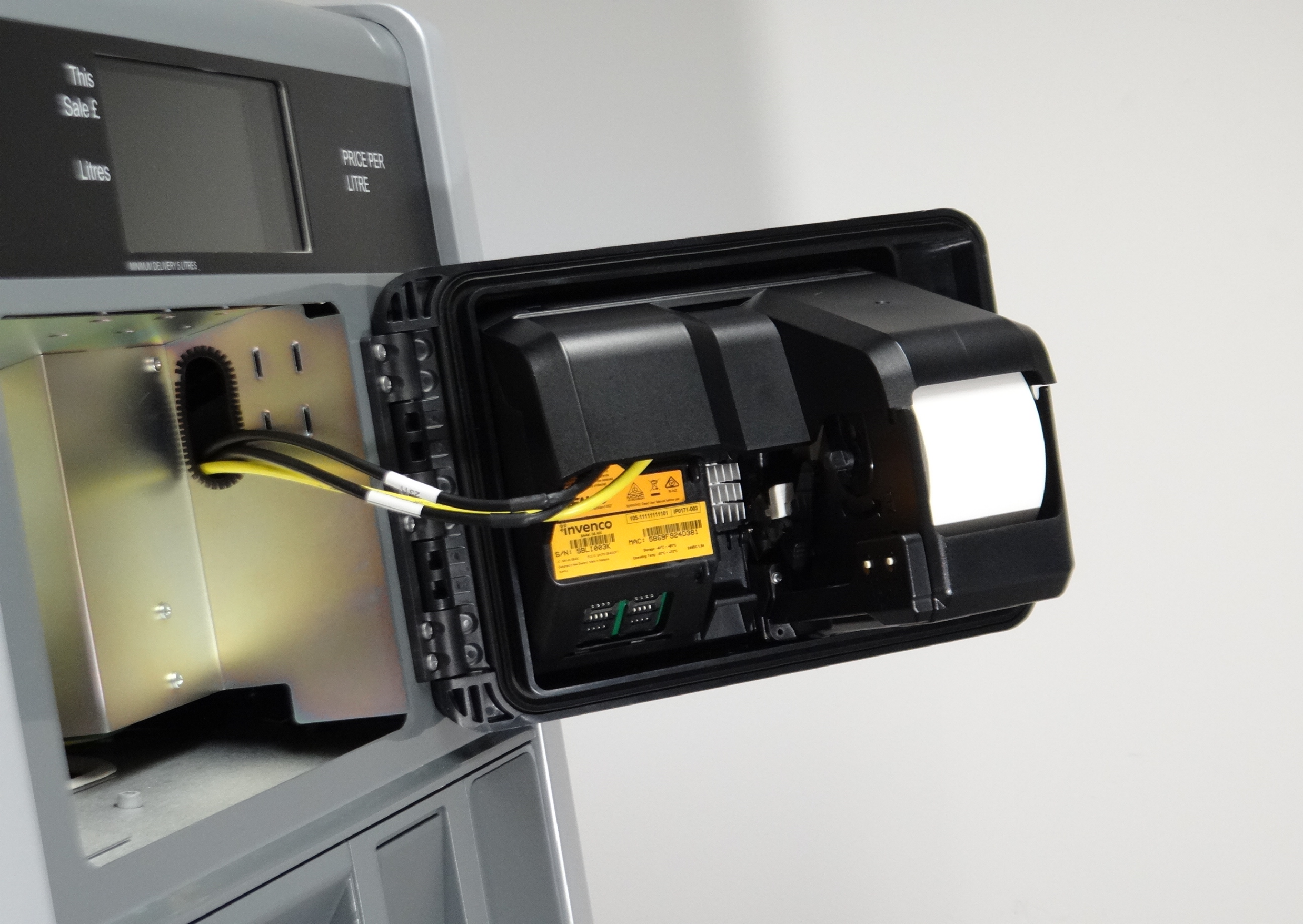

Above: Rear view of the A2-09 showing the new printer with the larger capacity receipt roll.
The design considered the emerging alternative fuel market, particularly the needs of customers delivering Hydrogen. The PIN-on-glass PIN entry system is gas-proof and eliminates button switching that could be hazardous with Hydrogen. The A2-09 has also been future proofed with support for predictive AI enhanced interfaces already designed and built in.
The A2-09 was a finalist in the New Zealand Best Awards, 2024.
Role: Senior Industrial Designer
Tasks: contributing industrial designer. Design of various components and sub assemblies. UI design, icons and graphics. Retrofit kit updates.
